MEKI™
The Most Compact Food X-ray Inspection System
MEKI™ - Offering the Best Value
MEKI™ is an automated product quality control system using the latest X-ray image processing technology. The system images the inside of food products detecting foreign objects (e.g. metal, stones, glass, bones and dense plastics), simultaneously ensuring the overall quality and traceability of food production.
As like with other Mekitec X-ray systems, high moisture, salt content, or different type of packaging materials (e.g. metal or aluminum) are not a problem for the inspection.
MEKI™ requires the least amount of installation space in the production line compared to any other X-ray quality control system. By focusing on primary packaging inspection, we deliver the best performance and value to Mekitec’s most valuable stakeholder – our customer
Technical Specifications
| Conveyor speed | min. 0.1 m/s max. 1.3 m/s |
| Conveyor load capacity | max. 5 kg |
| X-ray power | 30-60 kV, 0.2–2.5 mA, max 100 W |
| X-ray leakage | Less than 1 µSv/h |
| Detector | Linear scanner, resolution 0.4 mm |
| Software | Mekitec X-Ray Inspection System SW |
| Operating system | Windows 10 |
| Connectivity | USB, Ethernet |
| HMI | 12” Color TFT LCD Screen |
| Operation Temperature | 0–35°C ambient |
| Cooling | Optional cooling system |
| IP rating | IP54 |
| Relative humidity | 30-85 %, non-condensing |
| System power supply | 110/240 VAC, 50–60 Hz |
| Dimensions (W x D x H) | 800/1200 mm x 515 mm x 2000 mm |
| Weight | 100 kg |
| Material | Stainless steel, brushed |
| Reject options | Optional air reject or pusher with bins |
| System conveyor | EU and FDA food use approved conveyor belt |
| Radiation protection | EN 61010-02-091, FDA CFR 21 part 1020.40 |
| Safety system | Safety circuit CAT 3, Performance Level PL d |
Detection Area
Maximum detection area based on product height (mm)

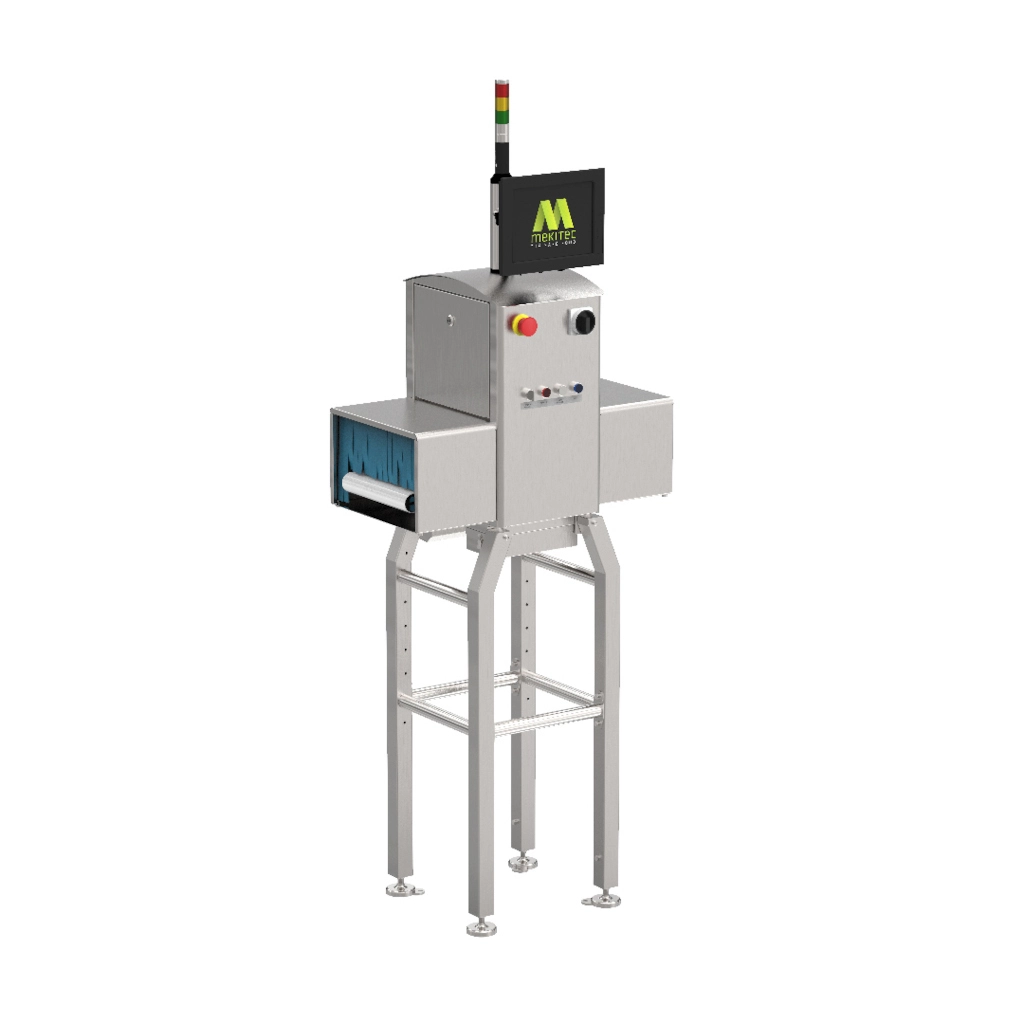

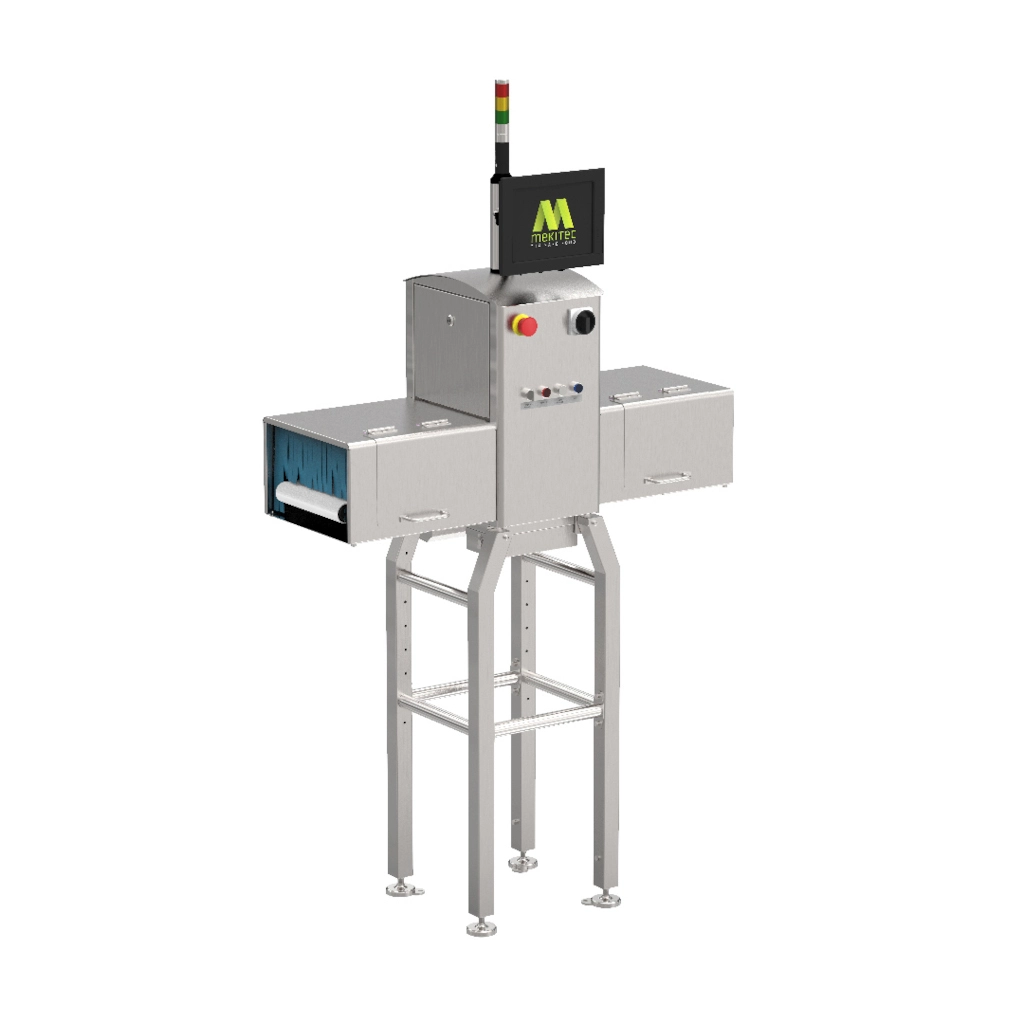

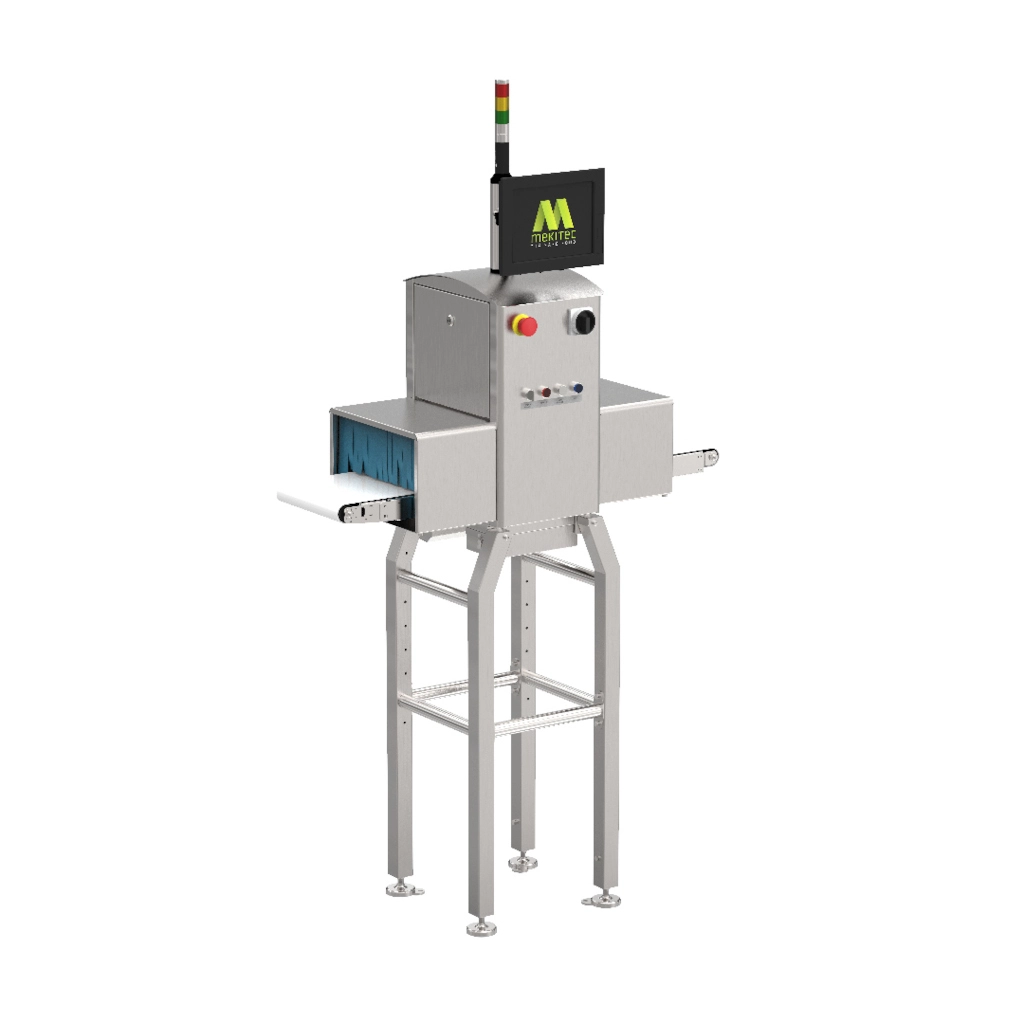

For ME.S1 and ME.S2 the maximum product length is 250 mm and for ME.S3 the maximum length is 450 mm. For longer products, contact Mekitec.
Mekitec Oy, info@mekitec.com, www.mekitec.com
Disclaimer: All information is provided for information purposes only and shall not be considered as assured characteristics. The information and technical data presented in this document are subject to change. Customers should obtain and verify the latest relevant information before placing orders. If you have any questions related to the datasheet, please contact us via email or phone. Thank you.
Copyright 2022 Mekitec Ltd. All rights reserved
Key Features
Foreign Object Detection
Detects metal, stones, glass, bones, and dense plastics inside food products
Space-Efficient Design
Requires minimal installation space compared to other X-ray systems
Quality Assurance
Ensures overall quality and traceability of food production
Versatile Inspection
Effective regardless of moisture, salt content, or packaging materials
