MEKI™ ONE
Complete X-ray Inspection Solution in a Single Package
All you need in ONE
MEKI™ ONE is a concept with all you need from a Critical Control Point in one compact package. The ONE concept combines the superior X-ray sensitivity with the smallest footprint, still having all the latest features and functionalities expected by the global quality standards, such as integrated automatic reject, rejection bin, confirmation sensors, and system reporting.
MEKI™ ONE makes it easy for food producers to introduce food X-ray quality control to any packaging lines. The concept ensures that producers will meet and exceed expectations for production quality. With MEKI™ ONE, we offer the best value for the investment.
Technical Specifications
| Detection Area (W x H) | 240mm x 110mm (9.5" x 4.3") |
| Conveyor Speed | min. 0.1 m/s (0.3 ft/s), max. 1.3 m/s (4.3 ft/s) |
| Maximum Load Capacity | 3 kg (8 lbs) |
| X-ray Power | 30-60 kV, 0.2–2.5 mA, max 100 W |
| Residual Radiation | Less than 1 µSv/h |
| Detector | Linear scanner, 0.4 mm resolution |
| Software | Mekitec X-Ray Inspection SW |
| Operating System | Windows 10 |
| Connectivity | USB, Ethernet |
| HMI | 12" Color TFT LCD screen |
| Operating Temperature | 0–35 °C ambient (32-95° F) |
| Cooling | Optional air conditioning |
| IP Rating | IP54 |
| Relative Humidity | 30-85%, non-condensing |
| Power Supply | 110-230 VAC, 50/60 Hz |
| Dimensions (W x D x H) | 1200/1280 x 715 x 2000 mm (47"/50" x 28" x 79") |
| Weight | 155 kg (342 lbs) |
| Material | Stainless steel |
| Rejector | Integrated rejection with bin and standard reject confirmation |
| Options | One/two conveyor mode, push arm rejection, hand sensors* and complete reject confirmation |
| Conveyor | EU and FDA approved conveyor belt |
| Radiation Protection | EN 61010-02-091, FDA CFR 21 part 1020.40 |
| Switches | Safety circuit CAT 3, Performance Level PL d |
*Hand sensors are required unless user access to radiation areas is prevented by other means, such as additional covers or conveyor covers.
Detection Area
Maximum detection area based on product height (mm)
Maximum product length is approx. 250 mm, depending on the product weight and line speed.
Rejection bin opening is 300 x 200 mm.

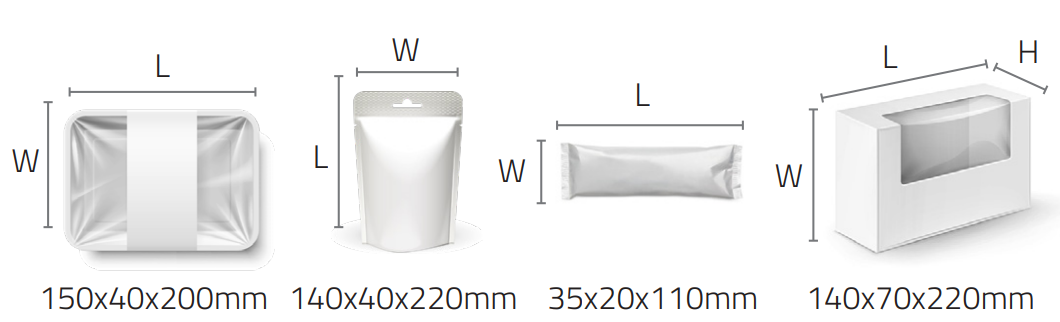

Product Examples (W x H x L)
Mekitec Oy, info@mekitec.com, www.mekitec.com
Disclaimer: All information is provided for information purposes only and shall not be considered as assured characteristics. The information and technical data presented in this document are subject to change. Customers should obtain and verify the latest relevant information before placing orders. If you have any questions related to the datasheet, please contact us via email or phone. Thank you.
Copyright 2022 Mekitec Ltd. All rights reserved
Key Features
All-in-One Solution
Complete quality control station in a single compact package
Automatic Rejection
Integrated rejection system with confirmation capability
Comprehensive Reporting
Advanced reporting system for quality assurance documentation
Cost-Effective
Best price-quality ratio for food production quality control
