MIDMEKI
Advanced X-ray inspection optimized for medium-sized food products
MIDMEKI – Offering the Best Value
MIDMEKI quality control system uses the latest X-ray image processing technology. This system combines the benefits of our compact MEKI™ with a wider conveyor and significantly larger detection area to accommodate larger primary packaged food products.
It is especially designed for the inspection of medium-sized products and trays of smaller products. As like with other Mekitec X-ray systems, high moisture, salt content, or different type of packaging materials (e.g. metal or aluminum) are not a problem for the inspection.
With MIDMEKI, we focus on what is important and necessary in an X-ray system for a food producer. By choosing primary packaging inspection, we deliver the best performance and value to Mekitec’s most valuable stakeholder – our customer.
Technical Specifications

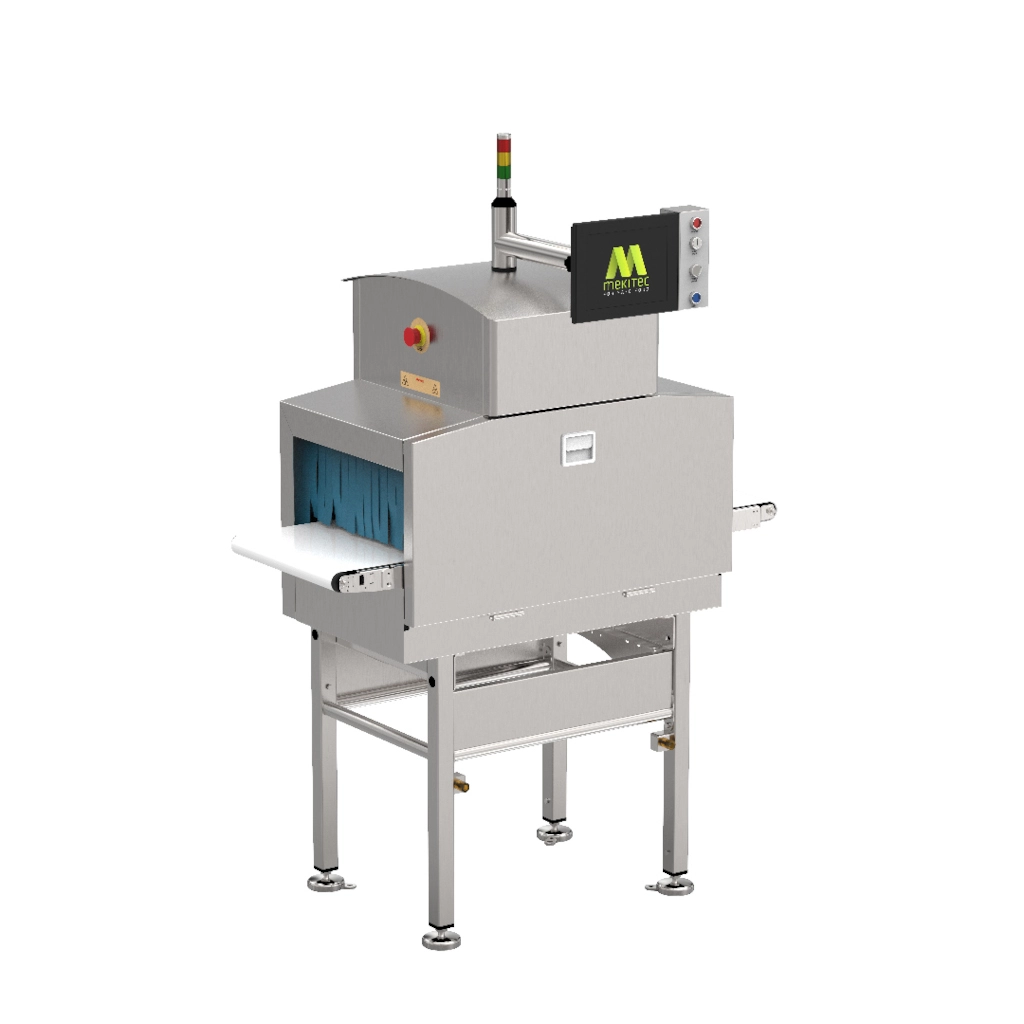

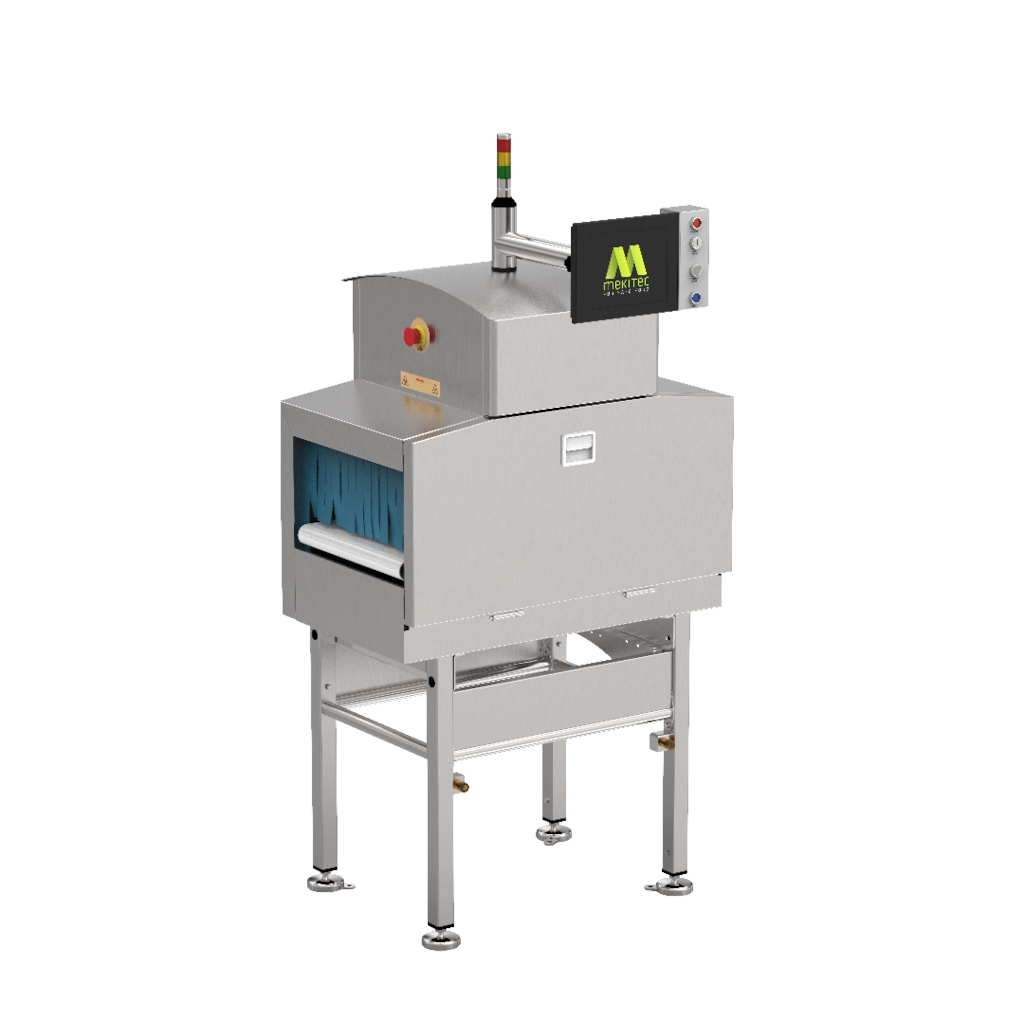

| Conveyor speed | MI.S1: 0.1-1.0m/s MI.S2 and MI.S3 available gear box configurations:
|
| Conveyor load capacity | MI.S1: max. 5kg MI.S2 & MI.S3: max. 20kg |
| X-ray power | 40-80kV, 0.2–5.0mA, max 200W |
| X-ray leakage | less than 1µSv/h |
| Detector | Linear scanner, resolution 0.4mm |
| Software | Mekitec X-Ray Inspection System SW |
| Operating system | Windows 10 |
| Connectivity | USB, Ethernet |
| HMI | 12” Color TFT LCD Screen |
| Operation Temperature | 0–35°C ambient |
| Cooling | Optional cooling system |
| IP rating | IP65 |
| Relative humidity | 30-85 %, non-condensing |
| System power supply | 110/240VAC, 50–60Hz |
| Dimensions (W x D x H) | 1000/1400mm x 702mm x 2020mm |
| Weight | 250kg |
| Material | Stainless steel, brushed |
| Reject options | Optional air reject or pusher with bins |
| System conveyor | EU and FDA food use approved conveyor belt |
| Radiation protection | EN 61010-02-091, FDA CFR 21 part 1020, 40 |
| Safety system | Safety circuit CAT 3, Performance Level PL d |
Detection Area
Maximum detection area based on product height (mm)

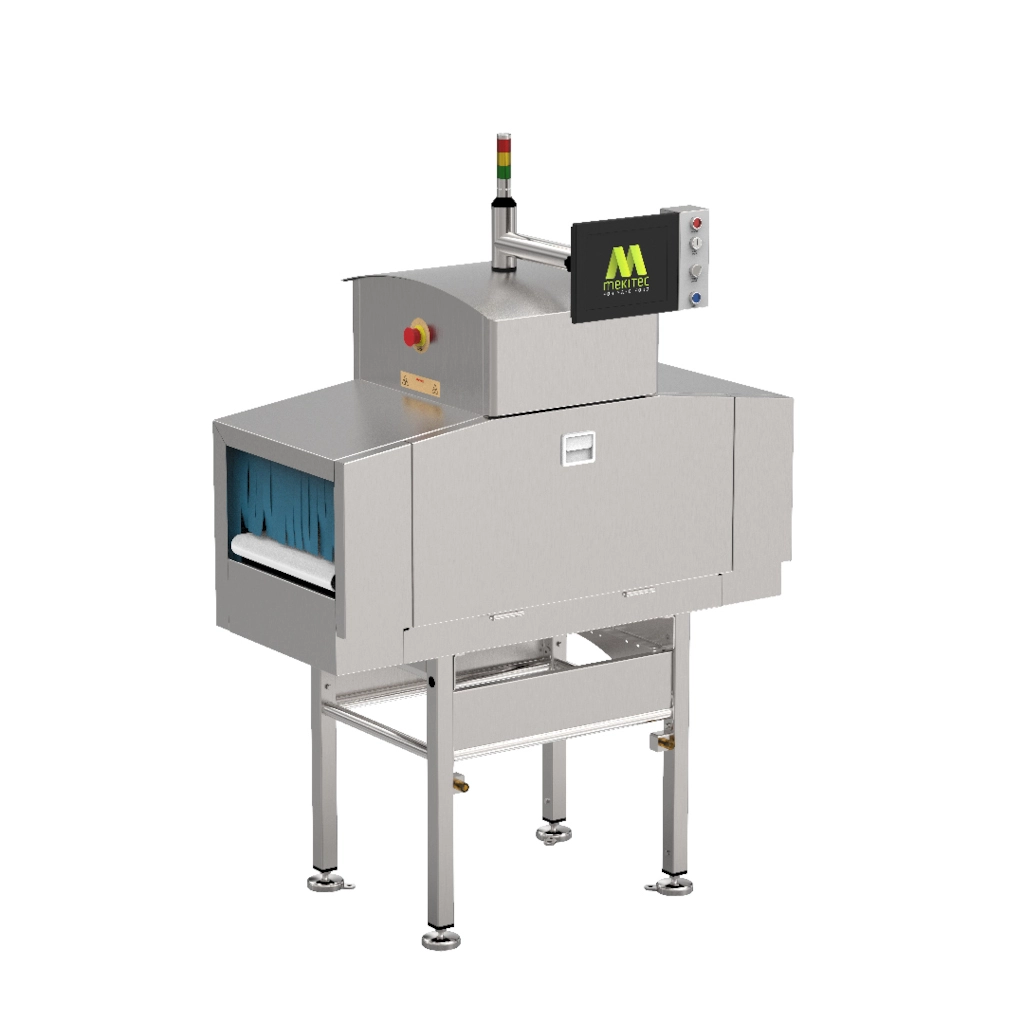

For MI.S1 and MI.S2 the maximum product length is 300mm and for MI.S3 the maximum length is 500mm. For longer products, contact Mekitec
Mekitec Oy, info@mekitec.com, www.mekitec.com
Disclaimer: All information is provided for information purposes only and shall not be considered as assured characteristics. The information and technical data presented in this document are subject to change. Customers should obtain and verify the latest relevant information before placing orders. If you have any questions related to the datasheet, please contact us via email or phone. Thank you.
Copyright 2022 Mekitec Ltd. All rights reserved
Key Features
Enhanced Detection Area
Wider conveyor and larger detection zone accommodates medium-sized products and multi-pack trays
Material Versatility
Effectively inspects products regardless of moisture, salt content, or packaging material including metal and aluminum
Primary Packaging Focus
Specialized for inspection at the primary packaging stage for optimal performance and value
Advanced X-ray Technology
Utilizes latest X-ray image processing technology for superior foreign object detection
