WIDESMART
X-Ray Quality Control for Wide Products
X-Ray Quality Control for Wide Products

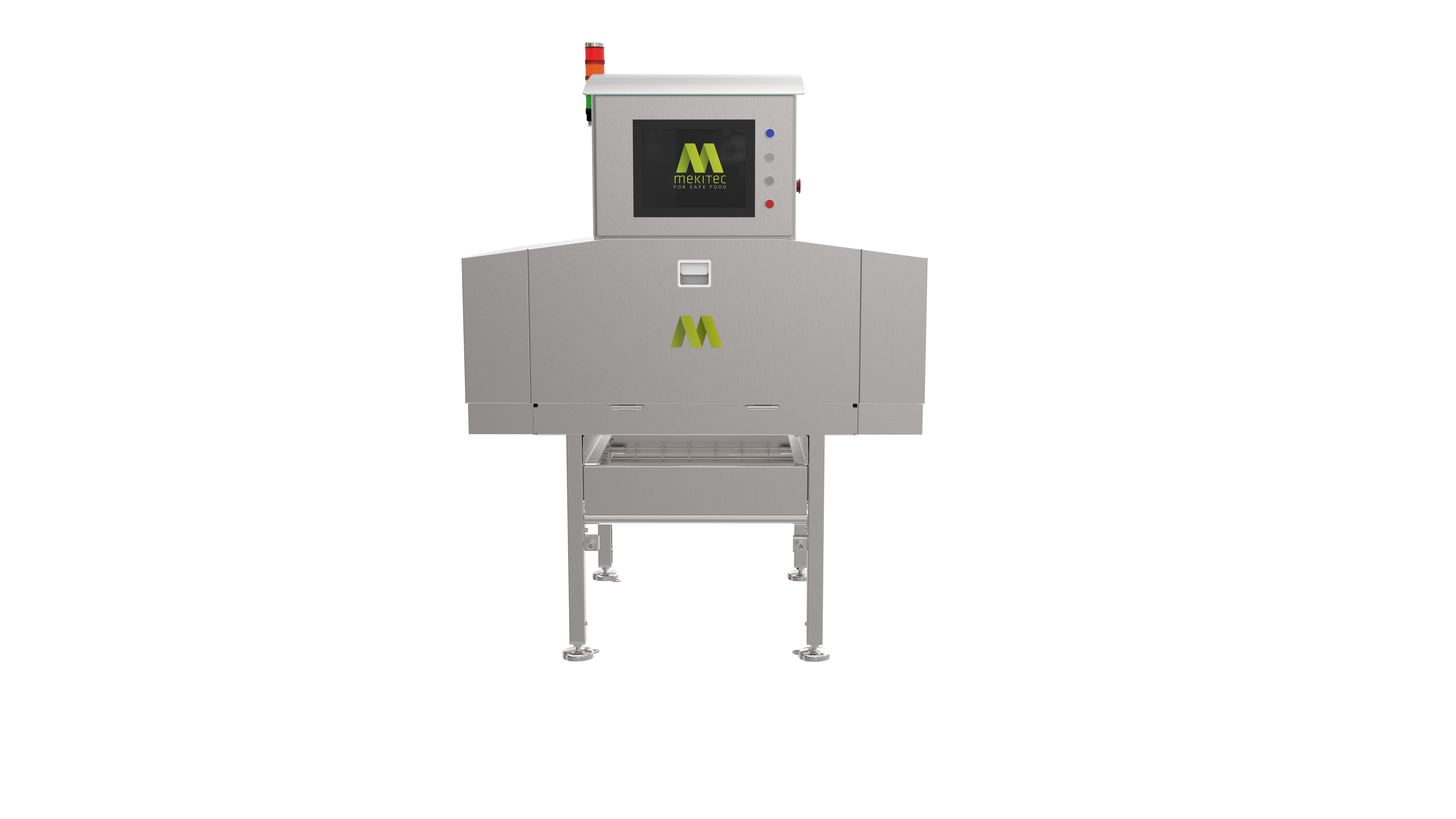

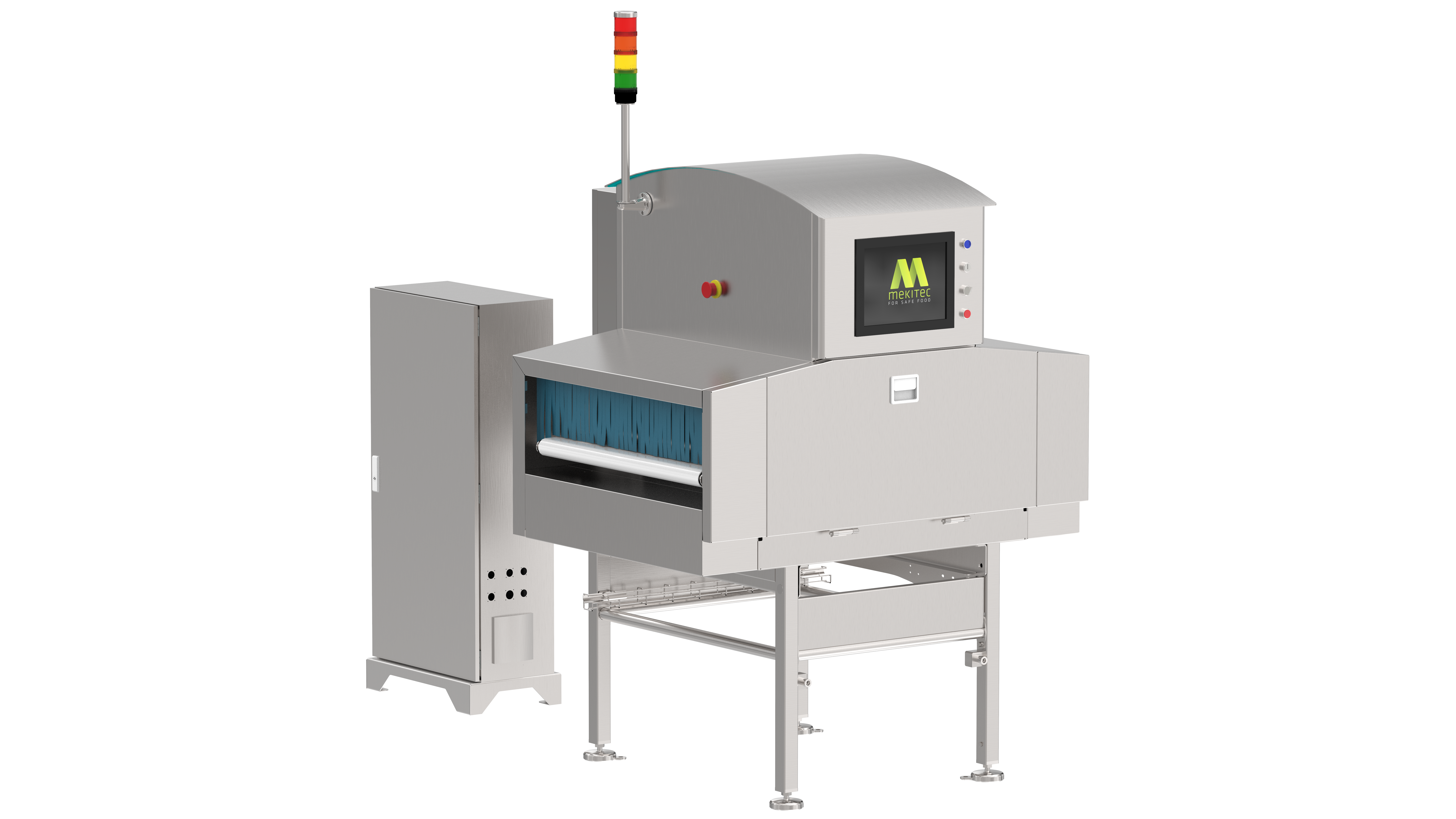

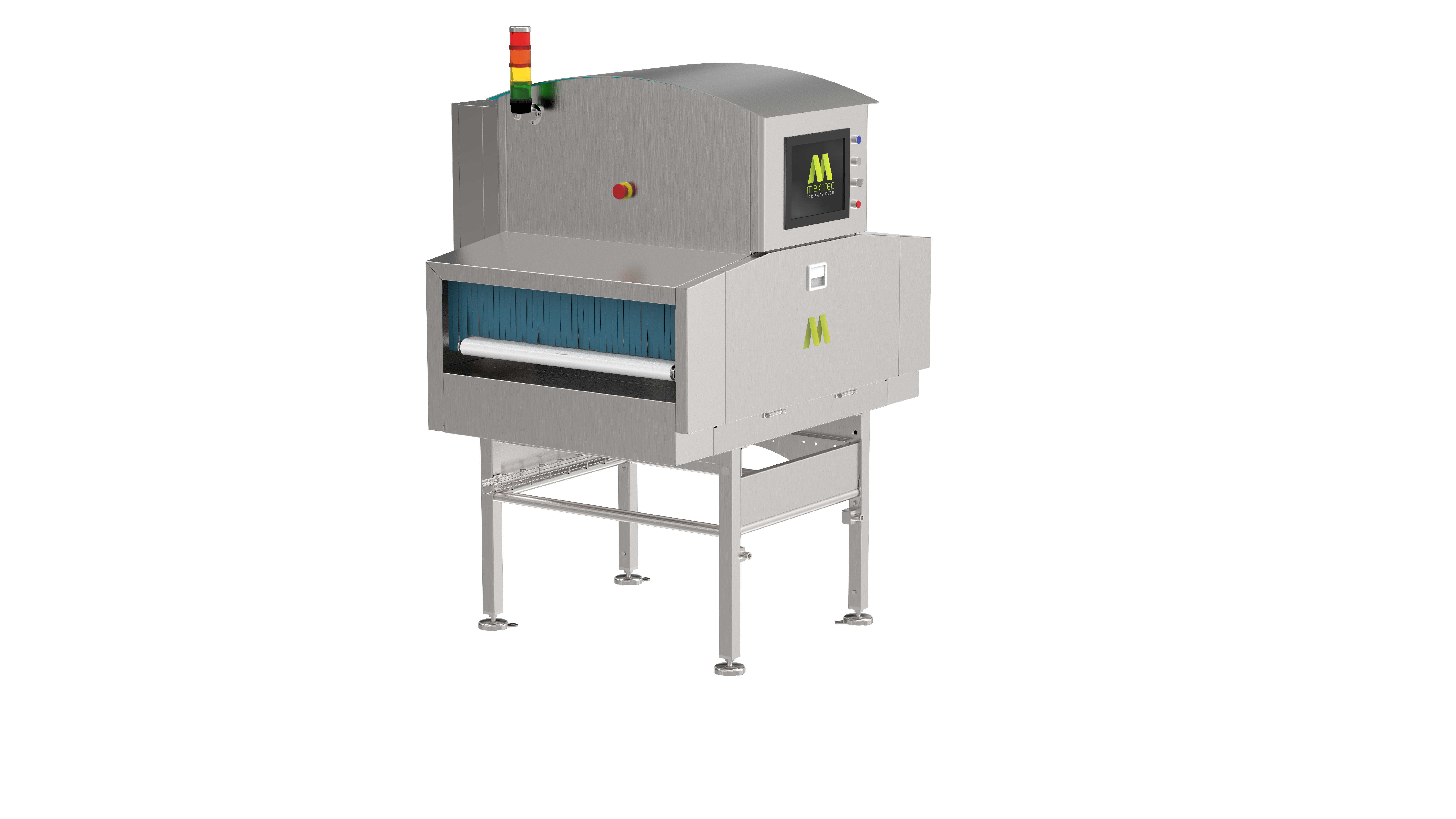

The WIDESMART X-ray inspection system is designed for food packages that are significantly wider than standard consumer packaged food products. The system provides bakers and other food production manufacturers an automated X-ray inspection at the best value in the industry.
The bakery industry has been one of the main focus areas when designing the system, since there are applications where the food products are extremely wide, such as pillow packs. What makes WIDESMART a unique inspection solution, is the combination of two parallel and partly overlapping X-ray images from two separate X-ray generator and detector pairs. This enables to have the distance between the parts to a minimum, which eliminates the need for high-power generator, reduces the system size, energy consumption, and improves the image quality and foreign object detection performance.
Technical Specifications
| Detection Area (W x H) | 28.7" x 4.7" (730 x 120mm) |
| Max Product Size (W x H) | 26.8" x 2.6" / 23.6" x 4.7" (680 x 65mm/600 x 120mm) |
| Conveyor Speed | Up to 3.3 ft/s (1.0 m/s) |
| X-ray/Detector Quantity | 2 X-ray generators and detectors paired |
| X-ray Power | 40-80 kV, 0.2-5.0 mA, 200W / each X-ray generator |
| X-ray Leakage | Less than 1 µSv/h |
| Detector | Linear scanner, resolution 0.4 mm |
| Software | Mekitec X-ray inspection System SW |
| Operating System | Win 10 |
| Connectivity | 6 x USB, 2 x Ethernet |
| HMI | 15" Touch Screen |
| Operation Temperature | 32-95° F ambient (0-35° C) |
| Cooling | Integrated AC* |
| IP Rating | System IP54, tunnel IP65 |
| Relative Humidity | 30-85%, non-condensing |
| System Power Supply | 110/240 VAC, 50-60Hz |
| Dimensions (W x D x H) | 55" x 55" x 77" (1400 x 1400 x 1950mm) |
| Dimensions: Electrical Cabinet | 12" x 24" x 51" (300 x 600 x 1300mm) |
| Weight | 1146 lbs + EA box 143 lbs (520kg + 65kg) |
| Material | Stainless steel, brushed |
| Reject Options | 1 or 2 rejectors |
| System Conveyor | EU and FDA food use approved conveyor belt |
| Radiation Protection | Meets EN 61010-02-091, FDA CFR 21 part 1020, 40 |
| Safety System | Safety Circuit CAT 3, Performance Level PL d |
* External circuit IP 34, Internal circuit IP 54. Requires the use of washing covers for air intake.
Detection Area
Height setup (300 mm)
Maximum detection area based on product height (mm)
Wide setup (340 mm)
Maximum detection area based on product height (mm)
Product Examples (W x H)
The WIDESMART is designed for wide products and packaging, like pillow pack applications in the bakery industry.
Mekitec Oy, info@mekitec.com, www.mekitec.com
Disclaimer: All information is provided for information purposes only and shall not be considered as assured characteristics. The information and technical data presented in this document are subject to change. Customers should obtain and verify the latest relevant information before placing orders. If you have any questions related to the datasheet, please contact us via email or phone. Thank you.
Copyright 2020 Mekitec Ltd. All rights reserved.
Key Features
Dual X-Ray Technology
Two parallel and partly overlapping X-ray images from separate generator and detector pairs
Wide Product Capability
Designed specifically for wide products like pillow pack applications
Energy Efficient
Eliminates need for high-power generator, reduces system size and energy consumption
Superior Detection
Improved image quality and foreign object detection performance
